Los Angeles, 1995, Job No.: JN95101
Replacement of two existing 4160 volt R-11 chillers with two 480 volt 450 ton R-134a water-cooled centrifugal chillers, including transformer and switchgear, in basement chiller and electrical rooms.
Services performed: mechanical and electrical engineering and drawings for design-build project delivery.

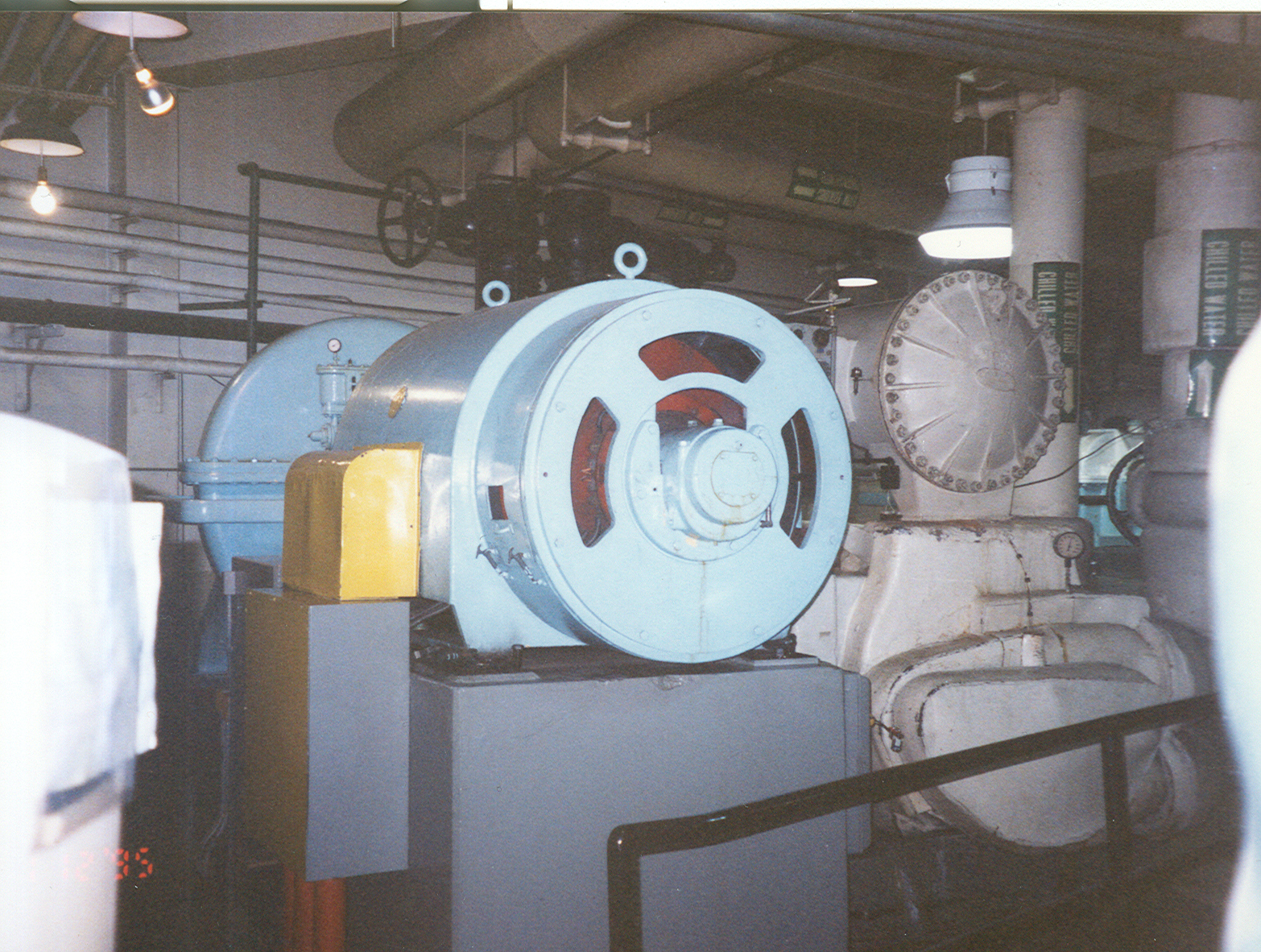

Original high voltage synchronous motor for for open-drive chiller	Original high voltage synchronous motor for for open-drive chiller

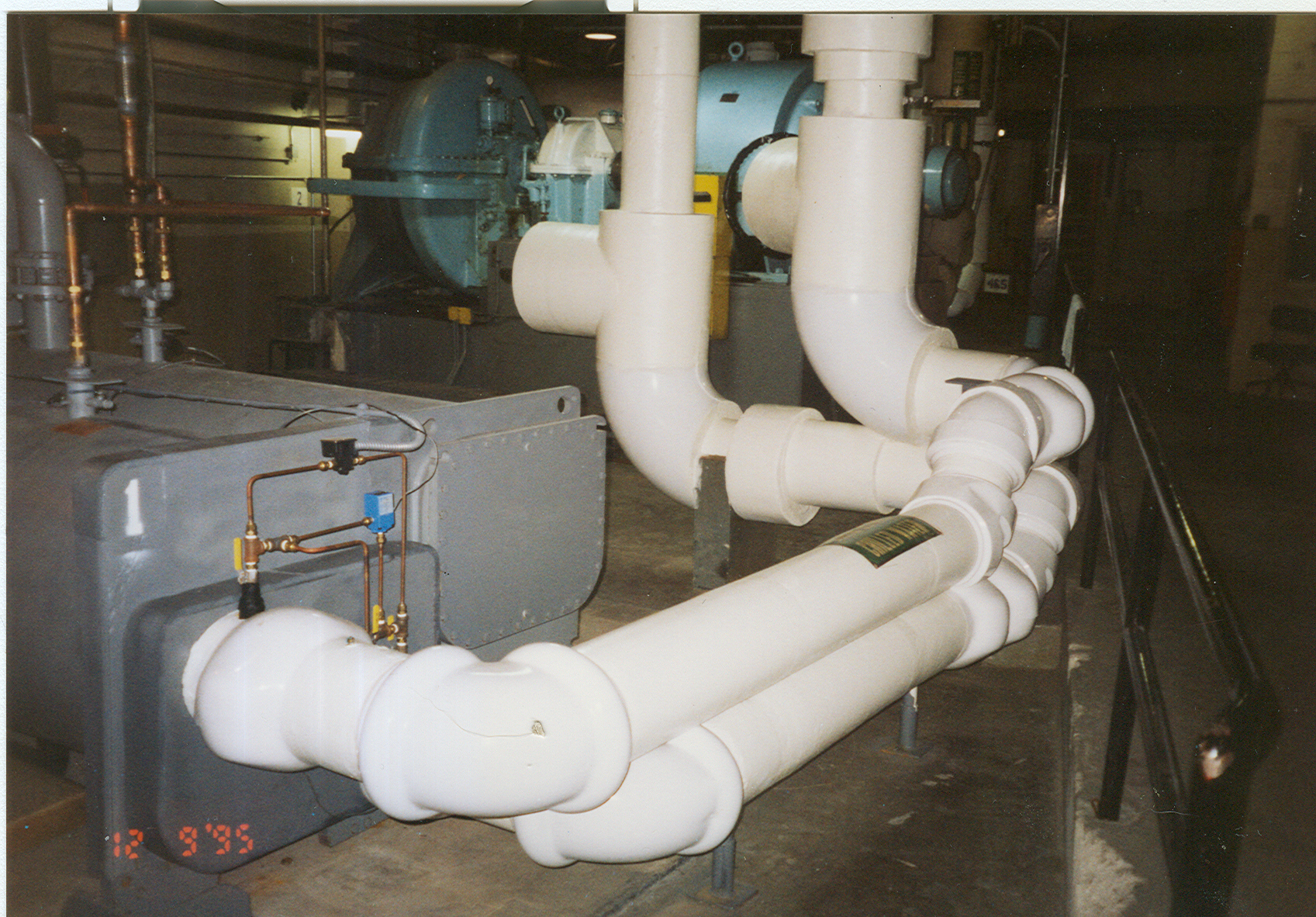

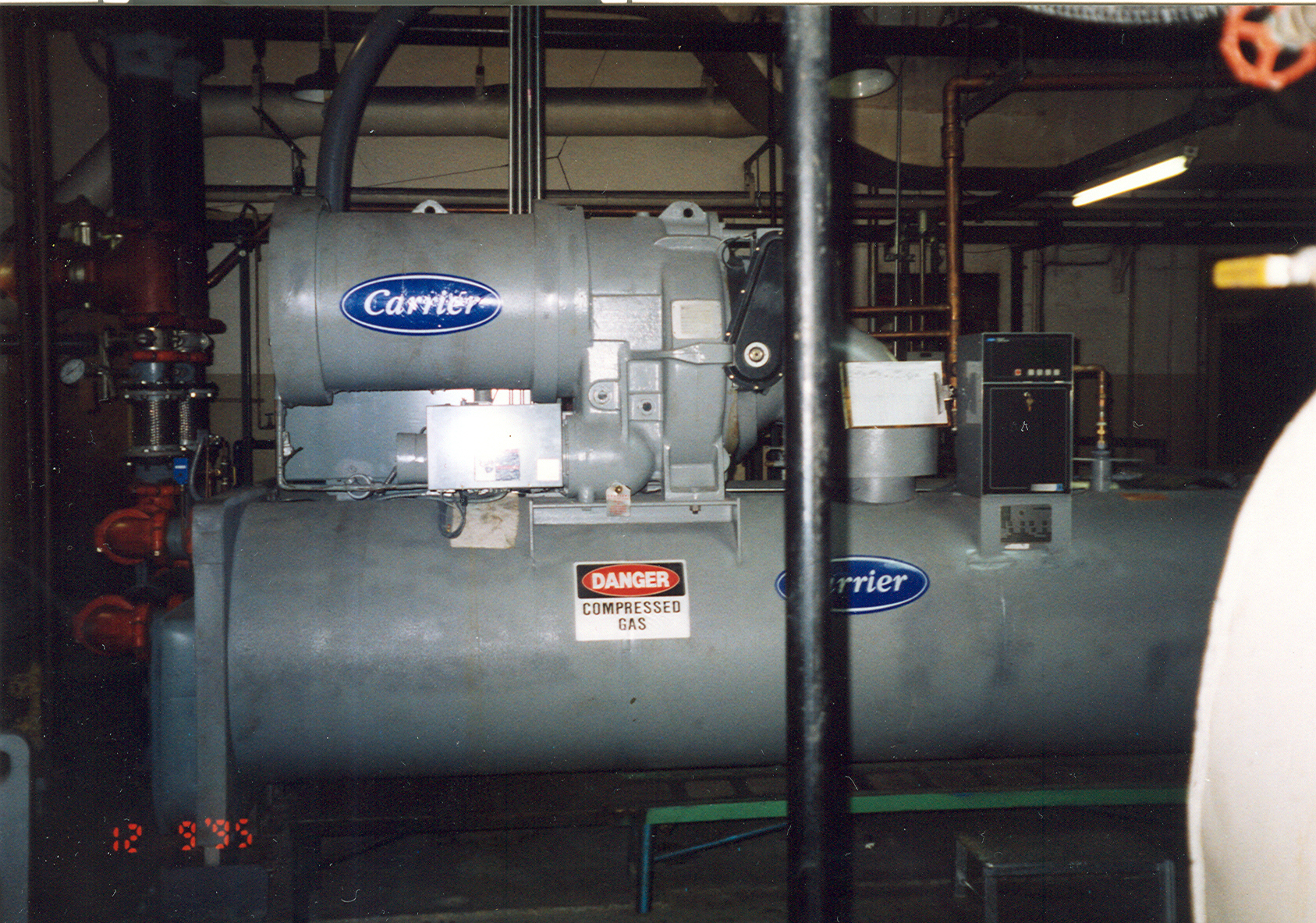

Replacement chiller	Replacement chiller piping

Replacement chiller piping

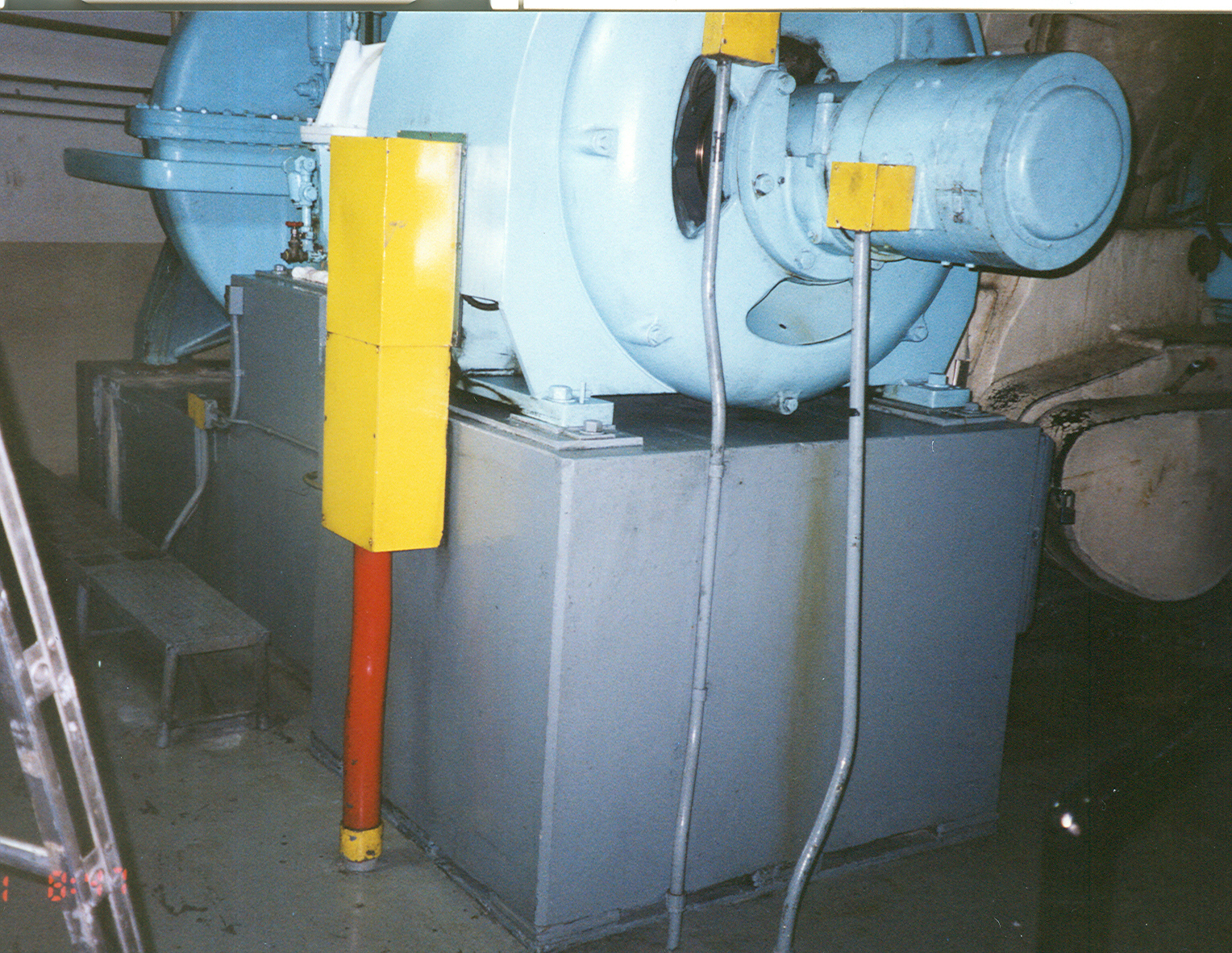

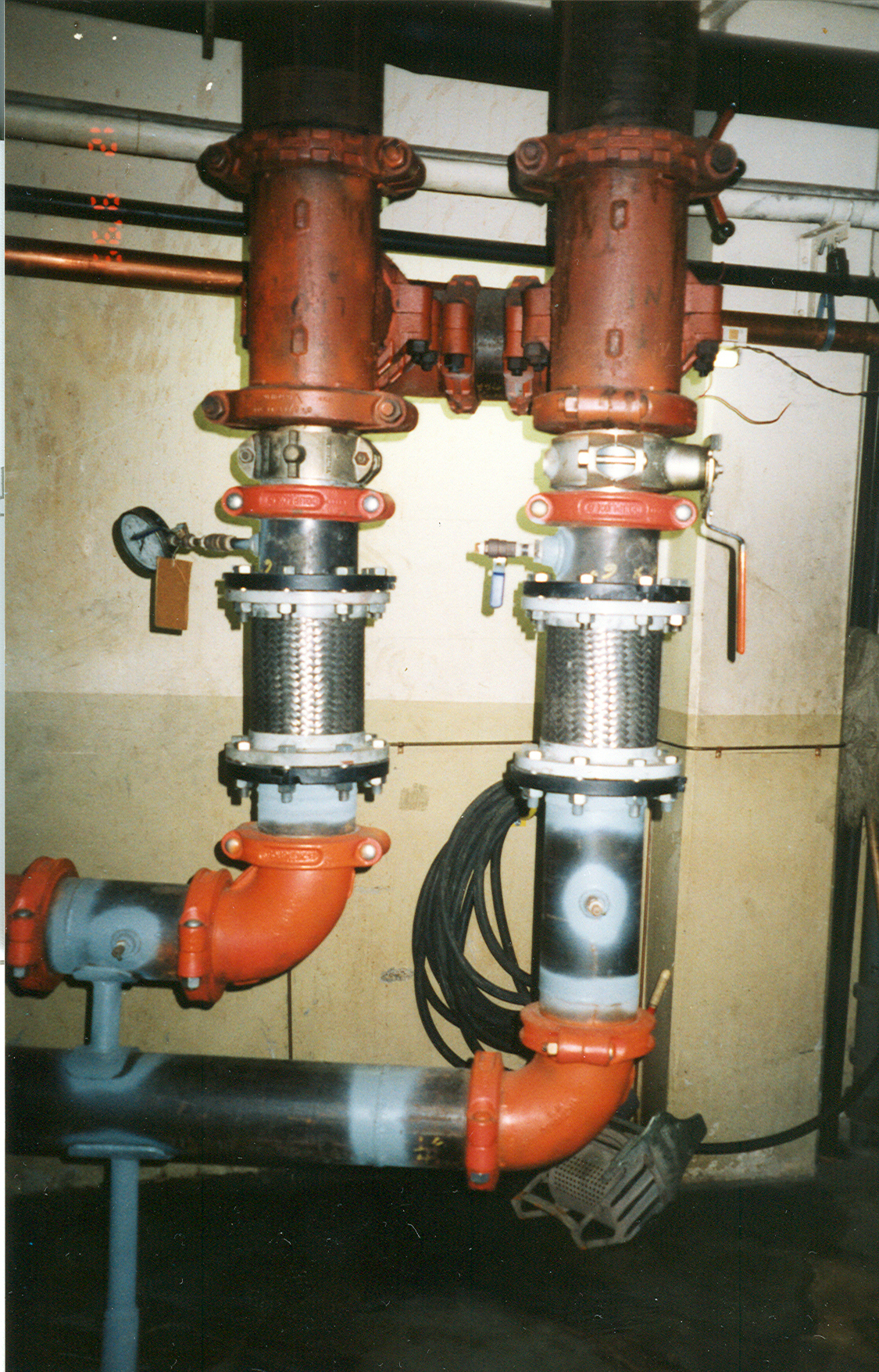

Original high voltage synchronous motor for starter	Replacement chiller CDW connections

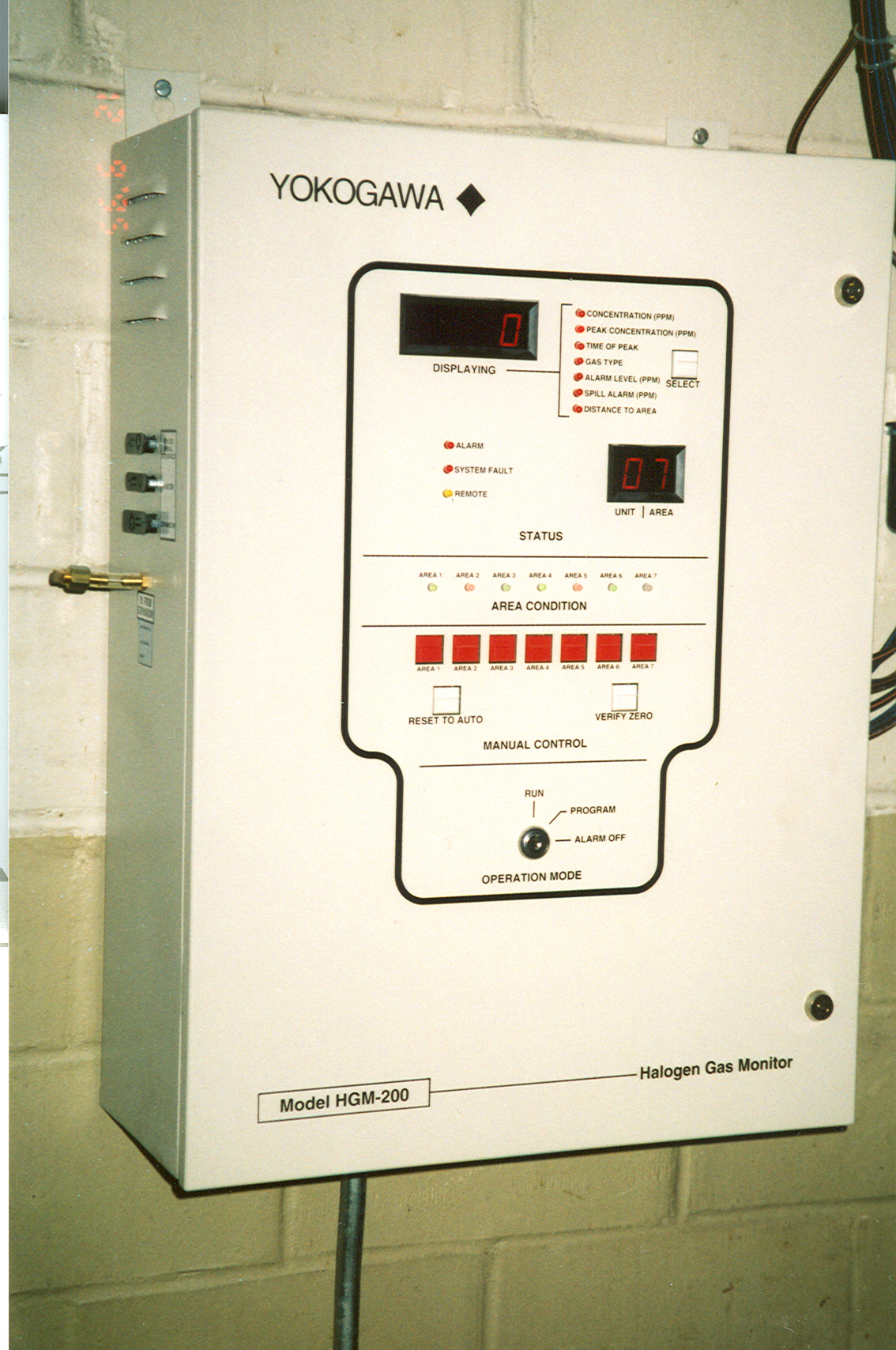

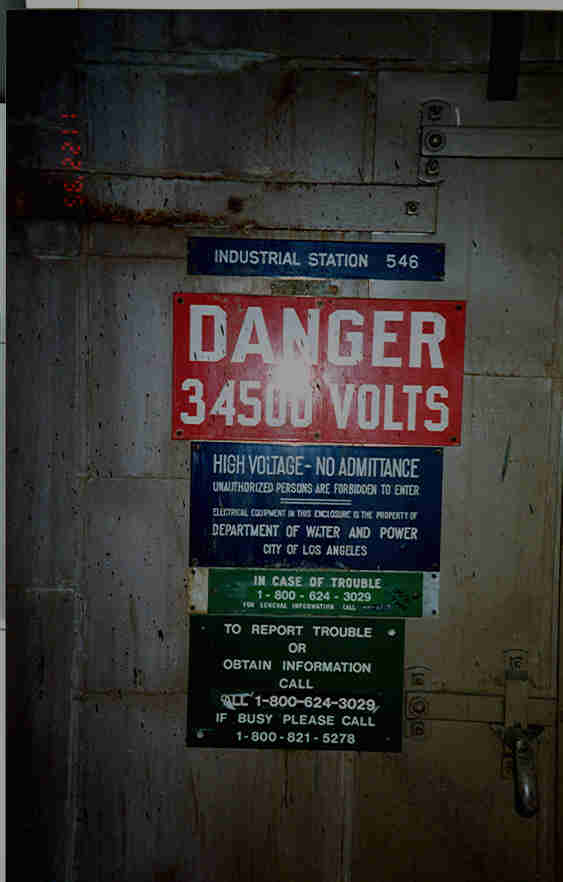

Refrigerant monitoring panel	Very high votage substation
