This project is a repurposing (adaptive re-use) of the City of Palm Desert Visitors Center (the first LEED-certified building in the Coachella Valley, constructed in 2005) into a branch of the Palm Springs Art Museum.
Program requirement: Upgrade the existing HVAC system to provide 24/7 environmental conditions for the Museum's art exhibits and collections. The existing 100% outside air system consisted of a York chilled water air handler with an indirect evaporative cooler, a York air-cooled chiller, and a variable air volume (VAV) air distribution with hot water reheat from a combined space heating and domestic water system. The upgraded system includes an airside economizer, replacement cooling coil, larger supply fan motor and drive, Neptronic gas-fired outdoor steam humidifier, and a new Carrier control system. The upgraded system maintains a constant indoor temperature and humidity throughout the year in a low desert climate which varies from cool and very dry winters to extremely hot and humid periods during the monsoon season.
Services performed: Mechanical and plumbing engineering and drawings for City of Palm Springs plan review and competitive bidding. Title 24 Energy Calculations.
Architect (Original and Remodel): Interactive Design Corporation.
Structural Engineer(Original and Remodel): Tang Structural Engineers.
General Contractor (Original and Remodel): WDL Construction.
Mechanical Contractor: Pacific West Industries.
Electrical and Lighting Contractor: System Electric.
Click on any image for an enlarged view.

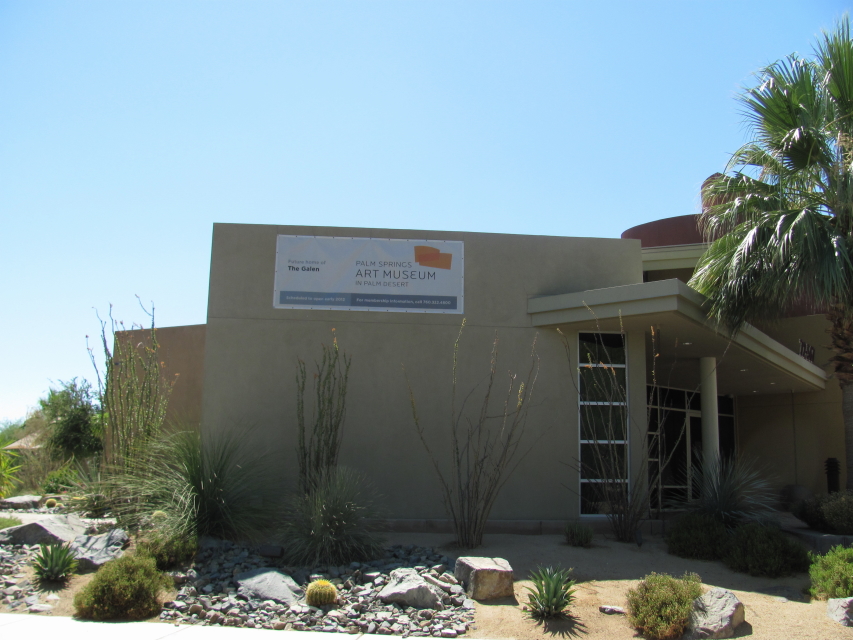

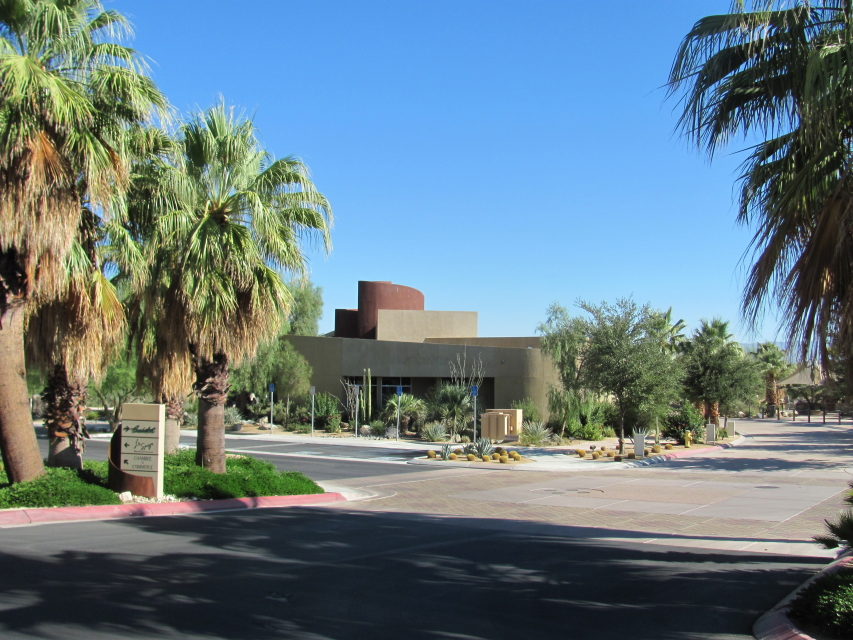

Palm Springs Art Museum Palm Desert Branch
Palm Springs Art Museum Palm Desert Branch
Palm Springs Art Museum Palm Desert Branch

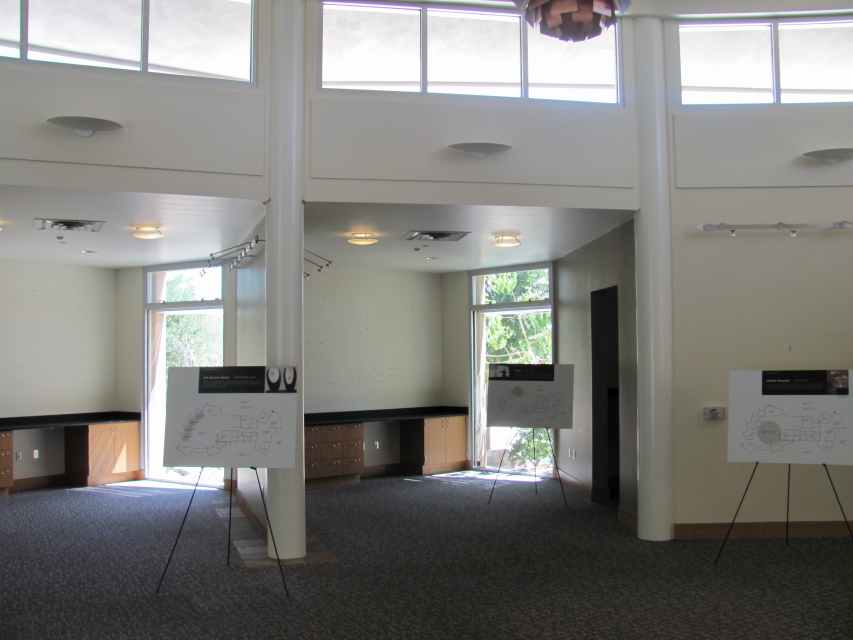

Original interior

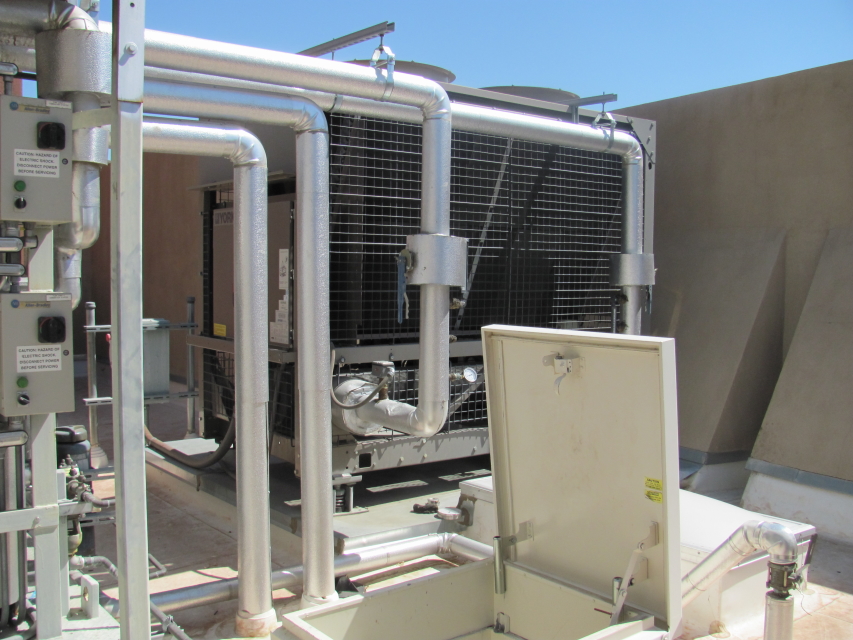

Original air-cooled chiller

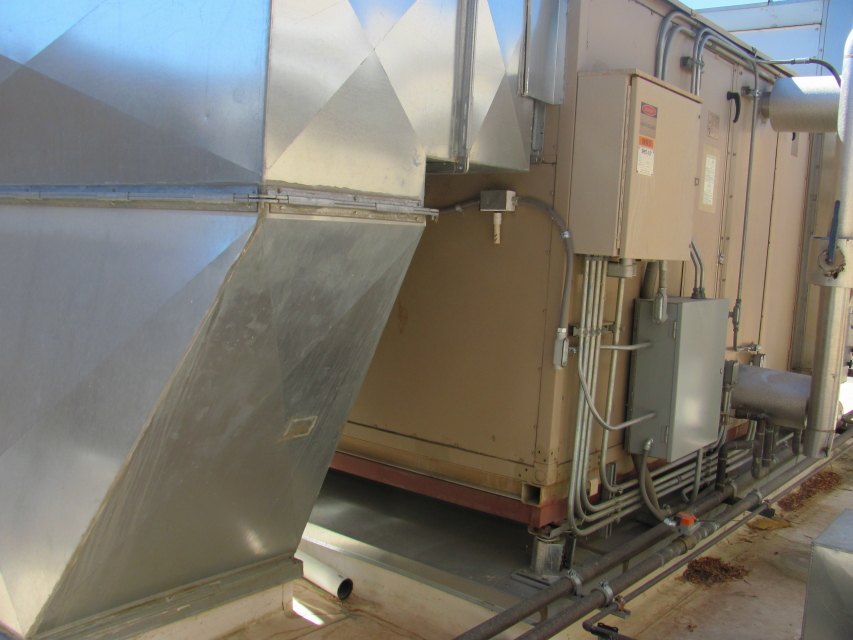

Original air handler
(100% outside air)

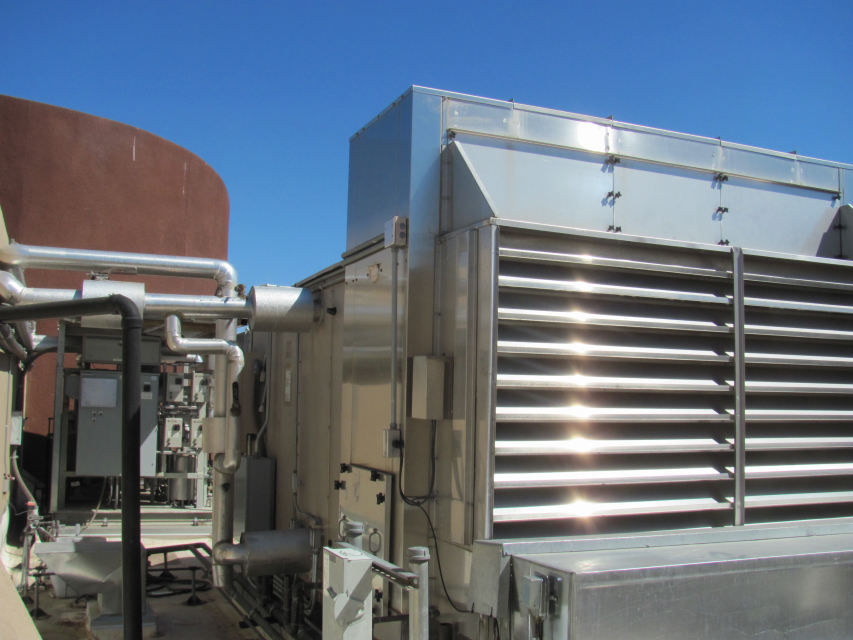

Original indirect evaporative cooling unit on air handler intake

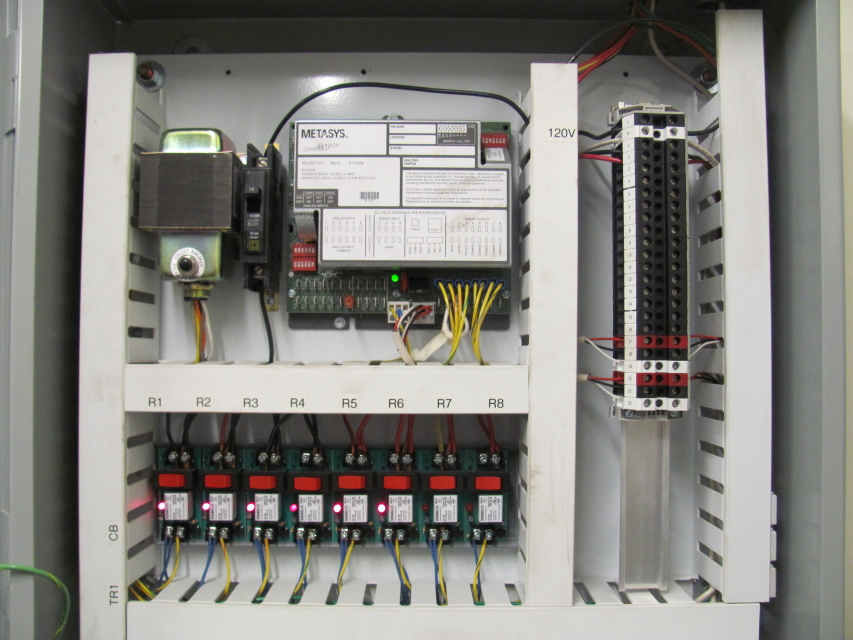

Original Johnson Metasys controls
